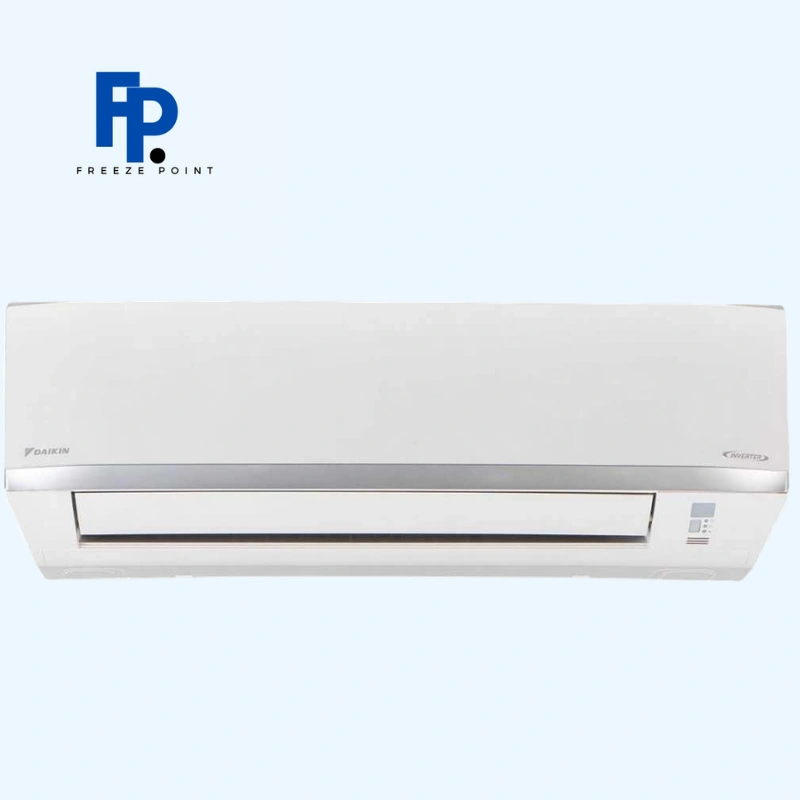

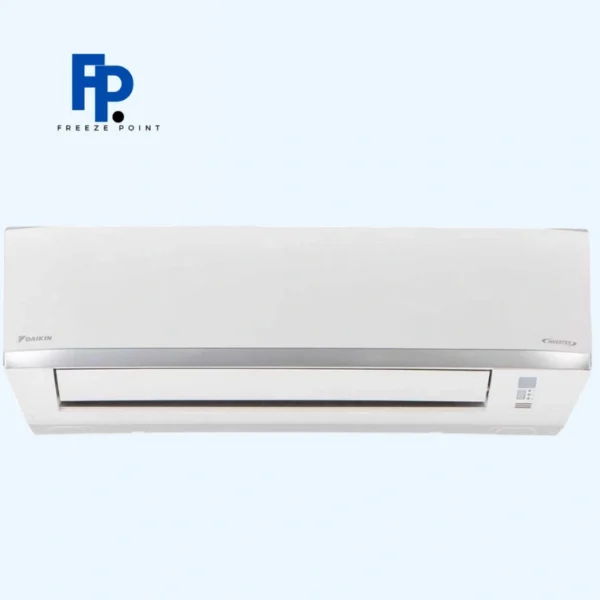

Daikin 2.3 Ton Inverter AC FTXC71DV1B – R32

The Daikin FTXC71DV1B is a 2.3-ton inverter split air conditioner designed for customers who need high-capacity cooling for large rooms and open indoor spaces. It comes with Heat & Cool functionality, inverter technology and R32 refrigerant, making it suitable for both summer and winter use.

The system has a rated cooling capacity of approximately 27,300 BTU/h, while its cooling capacity can operate from around 7,800 to 30,700 BTU/h depending on operating conditions. The matching outdoor unit is RXC71DV1B.

Key Features of Daikin FTXC71DV1B

• Capacity: 2.3 Ton
• Rated Cooling Capacity: 27,300 BTU/h
• Type: Inverter Split AC
• Function: Heat & Cool
• Indoor Model: FTXC71DV1B
• Outdoor Model: RXC71DV1B
• Refrigerant: R32
• Cooling Capacity Range: 7,800–30,700 BTU/h
• Nominal Cooling Input: 2.38 kW
• Nominal Heating Input: 2.46 kW
• SEER: 5.30
• Cooling Energy Class: A
• Maximum Cooling Airflow: 20.4 m³/min
• Power Supply: 220–240V / 50Hz
• Compressor: Hermetic swing
• Indoor Unit Dimensions: 297 × 990 × 273 mm
• Outdoor Unit Dimensions: 695 × 930 × 350 mm

Powerful Cooling for Large Spaces

The Daikin FTXC71DV1B 2.3 Ton inverter AC is designed for larger cooling requirements. With a rated capacity of approximately 27,300 BTU/h, it provides considerably more cooling capacity than smaller 1-ton, 1.5-ton or 1.8-ton systems.

This makes it a potential choice for large bedrooms, spacious living rooms, offices, halls and other areas where a high-capacity AC is required.

However, choosing the right AC should not be based on room size alone. Sun exposure, ceiling height, insulation, windows, number of occupants and heat-producing appliances can all affect the required cooling capacity.

Inverter Technology

The FTXC71DV1B uses inverter technology to vary compressor operation according to the cooling demand. Instead of continuously operating at one fixed output, the system can increase or reduce its capacity as conditions change.

This is particularly useful when the AC is operated for long periods. Once the room approaches the selected temperature, the system can reduce its output and continue maintaining the desired comfort level.

Actual electricity consumption will depend on operating hours, temperature settings, outdoor conditions, insulation and installation quality.

R32 Refrigerant

The Daikin FTXC71DV1B uses R32 refrigerant. Daikin’s official technical documentation lists R32 for the RXC-D series, including the RXC71DV1B.

R32 is widely used in modern air-conditioning systems and has a lower global warming potential than R410A. Correct installation and servicing are important to maintain the appropriate refrigerant charge and system performance.

Heat & Cool for Year-Round Use

This model is a Heat & Cool inverter AC, so you can use it for cooling during hot weather and heating when temperatures fall.

For customers who want one air-conditioning system that can provide comfort throughout the year, this dual-function design can be more practical than purchasing separate cooling and heating equipment.

High Airflow for Better Air Distribution

The indoor unit has a maximum cooling airflow of approximately 20.4 m³/min.

The combination of high cooling capacity and strong airflow helps distribute conditioned air across larger indoor spaces. For the best results, the indoor unit should be installed in a suitable position with a clear airflow path.

Furniture, curtains or other obstacles should not block the air outlet.

Energy Efficiency

The FTXC71DV1B has a published SEER of 5.30 and an A cooling energy-efficiency class under the applicable European energy-label specification. Standardized annual cooling energy consumption is listed at approximately 460 kWh/year.

This standardized figure should not be considered a guaranteed electricity bill. Actual consumption can vary significantly depending on how many hours the AC operates, the selected temperature, outdoor weather and the thermal characteristics of the room.

Designed for Larger Cooling Requirements

The FTXC71DV1B has a larger indoor and outdoor unit than the smaller models in the same FTXC-D range. The indoor unit measures approximately 297 × 990 × 273 mm, while the outdoor unit measures approximately 695 × 930 × 350 mm. The outdoor unit weighs around 45 kg.

Because of its larger capacity, proper installation is especially important. Correct refrigerant piping, drainage, electrical connections and outdoor-unit ventilation can all affect long-term performance.

Why Buy From Freezepoint.pk?

Buying an AC is a long-term decision, so customers need more than just a competitive price. They want confidence that the product they are purchasing is reliable and that help is available if something goes wrong.

When buying from Freezepoint.pk, customers can expect:

• Reliable product sourcing so you can make your purchase with greater confidence.
• Clear product information to help you understand the model before ordering.
• Guidance on AC selection so you can choose a capacity suitable for your room instead of simply buying the largest unit.
• After-sales support when you need assistance after your purchase.
• Warranty guidance so you understand the applicable warranty terms before buying.
• Customer-focused service rather than treating the sale as the end of the relationship.
• Support for long-term ownership, including helping customers understand basic maintenance and service requirements.

Our goal is to make the buying process straightforward and give customers confidence in their purchase.

Is Daikin FTXC71DV1B the Right Choice?

The Daikin FTXC71DV1B is a high-capacity inverter AC for customers who need approximately 27,300 BTU/h of rated cooling capacity.

Its combination of inverter operation, R32 refrigerant, Heat & Cool functionality and a wide cooling capacity range makes it a practical option for larger spaces.

If your room has a high heat load or large open area, selecting the correct capacity is especially important. A professional assessment can help determine whether 2.3 tons is appropriate for your specific space.

Daikin FTXC71DV1B FAQs:

What is the capacity of Daikin FTXC71DV1B?

The Daikin FTXC71DV1B is a 2.3-ton inverter AC with a rated cooling capacity of approximately 27,300 BTU/h.

Can this AC be used for heating?

Yes. The FTXC71DV1B is a Heat & Cool model, allowing it to provide both cooling and heating.

What is the cooling capacity range?

Daikin’s technical specification lists a cooling range of approximately 7,800 to 30,700 BTU/h.

Does FTXC71DV1B use R32 gas?

Yes. The matching RXC71DV1B outdoor unit uses R32 refrigerant.

What type of compressor does this Daikin AC use?

Daikin’s technical specification lists a hermetic swing compressor for the RXC71DV1B outdoor unit.

What voltage does the FTXC71DV1B require?

The RXC71DV1B is specified for a 220–240V, single-phase, 50Hz power supply.

Is a 2.3-ton AC suitable for every large room?

No. The required capacity depends on room dimensions, sunlight, insulation, ceiling height, windows and internal heat load. A larger AC is not automatically better if the room does not require that capacity.

What is the outdoor unit model?

The matching outdoor unit for FTXC71DV1B is RXC71DV1B.

How much electricity does this model consume?

Daikin’s standardized energy-label information lists approximately 460 kWh/year for space cooling. Actual electricity consumption depends on usage conditions and can be higher or lower than this standardized figure.

What is the maximum cooling airflow?

The indoor unit has a maximum cooling airflow of approximately 20.4 m³/min.
